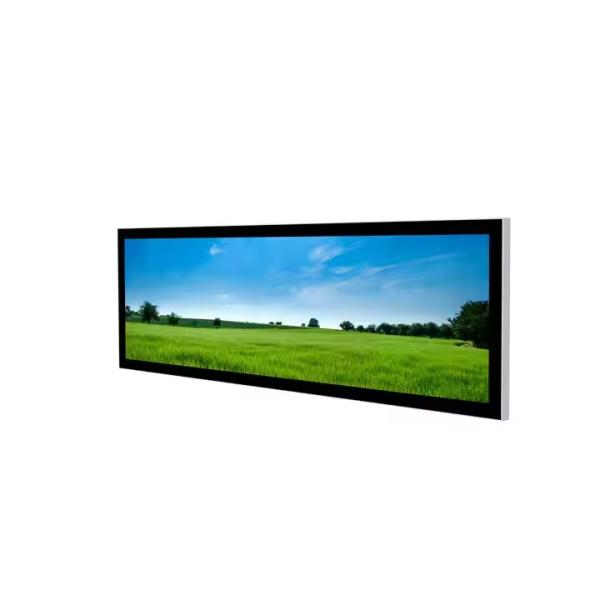

24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits

Brand Name : Fengshi

Model Number : FS240-E07-T

Place of Origin : Shenzhen, China

MOQ : 2pcs

Price : USD240-300/pc

Payment Terms : L/C,D/A,D/P,T/T,MoneyGram

Supply Ability : 10000pcs per month

Delivery Time : 1-2weeks

Packaging Details : Strong carton box + Wooden outer box

Product Name : Stretched LCD Display

Size : 24 inch

Resolution : 1920*360

Brightness : 500-1500nit

View Angle : 178/178

Warranty : 18 Months

Application : Transportation, Shelf display, Retail, Restuarant, Gaming usage

Life Time : 50K hours min

Response time : 5ms

Input voltage : DC12V

Mainboard : AD board with HDMI-in or Android board

Contact Now

24 Inch 1920x360p 500nit~1500nits Indoor Bar Stretched LCD Display Ultra Wide Monitor


24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits

Item 24'' high brightness LCD panel
Model FS240-E07-T
Screen Size 24 inches
Display Area 600.7*115.1mm
Outline Dimenssion 616.0*135.0*52.5mm
Panel Type High brightness LCD with WLED
Configuration RGB Vertical Stripe
Resolution 1920*360pixel
Brightness 500-1500nits
Aspect Ratio 5:4
Constrast Ratio 1200:1 (Typ.) (TM)
Response Time 20/5ms (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥20
Driver Elements a-Si TFT-LCD
Display Color 16.7M 72% (CIE1931)
Interface Type 30 pins LVDS (2 ch, 8-bit) , Connector
Input Voltage DC12V
Power 34.0W
Weight 5kg
Backlit Lifetime 50000hrs
Operating Temp. 0°- 60°C
Storage Temp. -20°- 60°C


Bar LCD Display Features


24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits


Ultra Wide Bar LCD Applications

24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits


24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits


24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits

24 Inch Indoor Bar Stretched LCD Display Ultra Wide Monitor With Mainboard AD Board And HDMI-in 1920x360p 500nit-1500nits
